Vasavi Electronics  specialize in  Automatic Test Equipment , Automatic Test Equipment for Transformers , Automatic Transformer tester , Automatic Relay Tester , Automatic Test Equipment for Relay ,  Test & measuring Instruments  for Transformers, coils, relays, capacitors and cables, Turns counter , LCR Meter ,Handheld LCR Meter, Digital Turns Tester and Digital LCR Meter with transformation ratio platform for transformers, Coil & Transformer Test Equipment, Coil Testing, Toroidal  turns Tester, Toroidal Turns Counter , Bobbin Turns tester , Bobbin turns counter , Coil Turns tester, Coil Turns Counter, Automatic SMPS / ADAPTER test System, Electronic DC Load, DC Power Supply.

Company Profile

Vasavi Electronics was established in early 70’s. Vasavi is led by a team of highly qualified managers and research engineers with decades of experience in instrumentation field. Vasavi Electronics surpasses international competition by orienting the products to the present trends. Vasavi Electronics is proud for its first introduction of Digital LCR Meters in India during early 70’s. After its successful launch of LCR meters ,  started increasing product range like Frequency Generators , Oscilloscopes , Digital Meters . etc and wide range of import substitute instruments.

During early 90’s Vasavi has realized the importance of Computer  controls and automation in testing . So it has with drawn many of the non profit and low value items. As a replacement it has introduced novel concepts in component testing with inexpensive solutions that tune with Indian requirements.  Vasavi Electronics started taking up challenging projects on software controlled Automatic Test Equipments.


Product Range

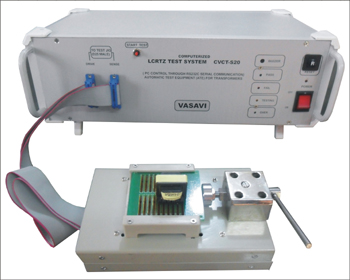

Computerized Transformer Test System (CVCT-S20)

Computerized Automatic Transformer Tester with inbuilt 20 Pin / Channel Scanner for Testing Coils & Transformers (Ferrite) with Max. 10 Windings. Can Test Inductance, Capacitance, Turns Ratio with Winding Polaity, DC Resistance, Q, ESR, Rac and Etc..

Test Frequency : 50Hz to 10KHz in 6 Steps

Test Signal Voltage : 100mV ~ 1000mV

CVCT-S20 : Technical Data / Demonstration Video

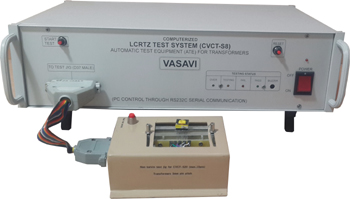

Computerized Transformer Test System (CVCT-S8)

Computerized Automatic Transformer Tester with inbuilt 8 Pin / Channel Scanner for Testing Coils & Transformers (Ferrite) with Max. 4 Windings. Can Test Inductance, Capacitance, Turns Ratio with Winding Polaity, DC Resistance, Q, ESR, Rac and Etc..

Test Frequency : 50Hz to 10KHz in 6 Steps

Test Signal Voltage : 100mV ~ 1000mV

CVCT-S8 : Technical Data / Demonstration Video

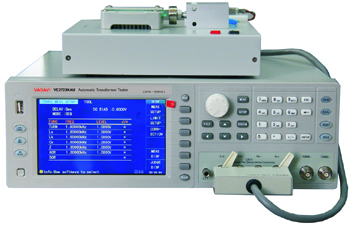

Automatic Transformer Test System

Automatic Transformer Tester with inbuilt 20 Pin / Channel Scanner for Testing Coils & Transformers (Ferrite) with Max. 10 Windings. Can Test Inductance, Capacitance, Turns Ratio with Winding Polaity, DC Resistance, Q, ESR, Rac and Etc..

VE2729xAU : 200KHz Transformer Tester
VE2739xAU : 500KHz Transformer Tester
VE2749xAU : 1MHz Transformer Tester

VE2729xAU : Technical Data / Demonstration Video

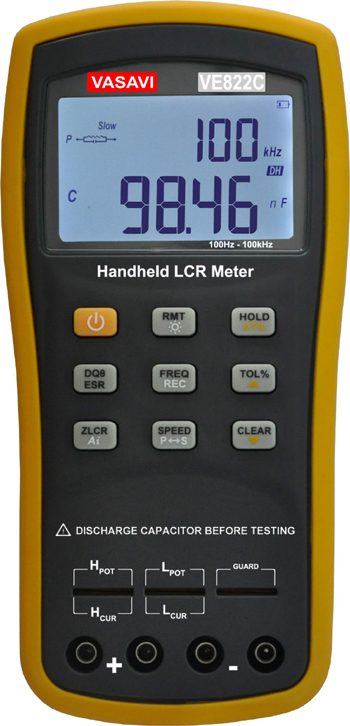

100KHz Handheld LCR Meter (VE822C)

Digital Handheld LCR Meter that can test Inductance (L), Capacitance (C), AC Resistance, Q, D, ESR and Tan. It comes with Battery Backup, very easy and handy to use.

Test Frequency : 100Hz, 120Hz, 1KHz, 10KHz, 100KHz

VE822C : Technical Data / Demonstration Video



BUY 100KHz Handheld LCR Meter (VE822C) :

10KHz Digital LCR Meter (VLCRZ)

10KHz Digital LCR Meter that can test Inductance (L), Capacitance (C), AC Resistance, Q, D, ESR and Tan.

Test Frequency : 50Hz, 100Hz, 500Hz, 1KHz, 5KHz, 10KHz

Test Signal Voltage : 100mV ~ 1000mV in Steps of 100mV

VLCRZ : Technical Data / Demonstration Video

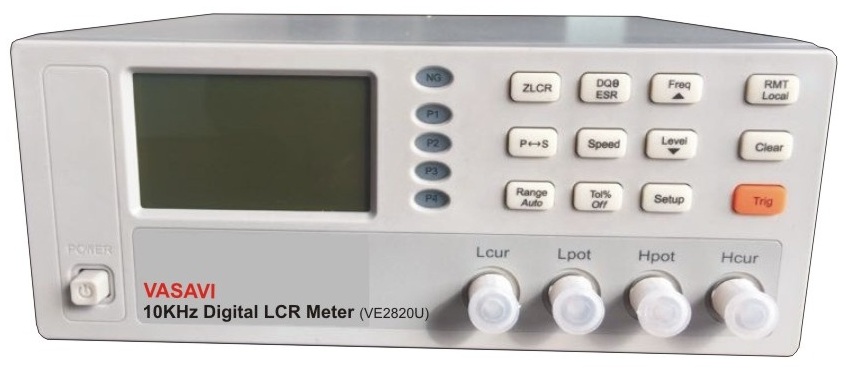

10KHz Digital LCR Meter (VE2820U)

10KHz Digital LCR Meter that can test Inductance (L), Capacitance (C), AC Resistance, Q, D. Comes with Bin Selection option.

Test Frequency : 100Hz, 120Hz, 1KHz, 10KHz

Test Signal Voltage : 0.1V , 0.3V , 1V

VE2820U : Technical Data Demonstration Video

BUY 10KHz LCR Meter (VE2820U) :

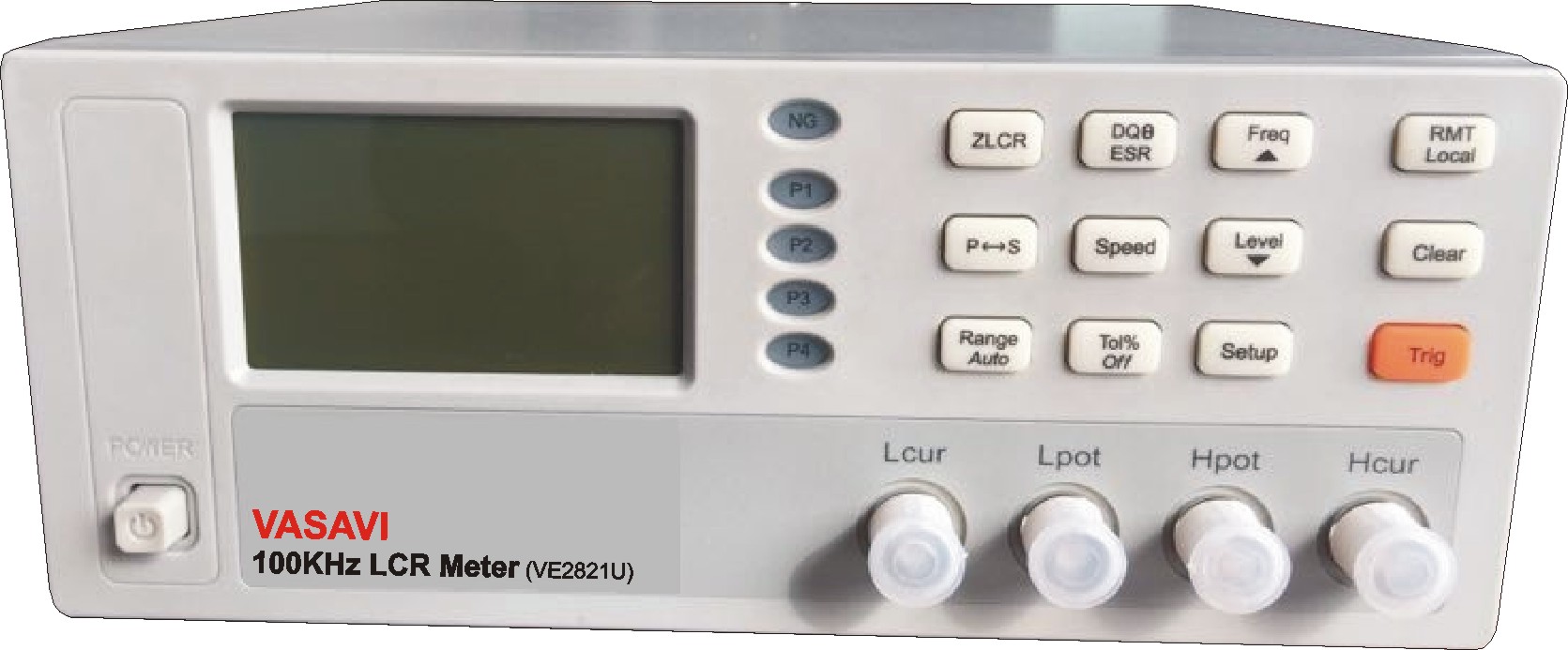

100KHz Digital LCR Meter (VE2821U)

100KHz Digital LCR Meter that can test Inductance (L), Capacitance (C), AC Resistance, Q, D. Comes with Bin Selection option.

Test Frequency : 100Hz, 120Hz, 1KHz, 10KHz, 100KHz

Test Signal Voltage : 0.1V , 0.3V , 1V

VE2821U : Technical Data Demonstration Video

BUY 100KHz LCR Meter (VE2821U) :

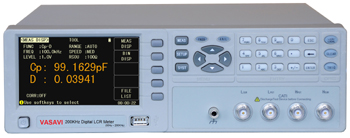

200KHz Digital LCR Meter (VE2836U)

200KHz Digital LCR Meter that can test Inductance (L), Capacitance (C), AC Resistance, Q, D, ESR and Tan. Comes with Bin Selection option.

Test Frequency : 50Hz ~ 200KHz

Test Signal Voltage : 100mV , 300mV , 1000mV , 2000mV

VE2836U : Technical Data / Demonstration Video

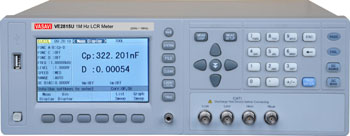

1MHz Digital LCR Meter (VE2815U)

1MHz Digital LCR Meter that can test Inductance (L), Capacitance (C), DC Resistance, Rac, Q, D, ESR and Tan. Comes with Bin Selection option.

Test Frequency : 50Hz ~ 1MHz

Test Signal Voltage : 10mV ~ 5V in Steps of 10mV

VE2815U : Technical Data / Demonstration Video

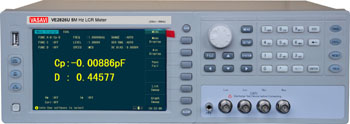

5MHz Digital LCR Meter (VE2826U)

5MHz Digital LCR Meter that can test Inductance (L), Capacitance (C), DC Resistance, Rac, Q, D, ESR and Tan. Comes with Bin Selection option.

Test Frequency : 50Hz ~ 1MHz

Test Signal Voltage : 10mV ~ 5V in Steps of 10mV

VE2826U : Technical Data / Demonstration Video

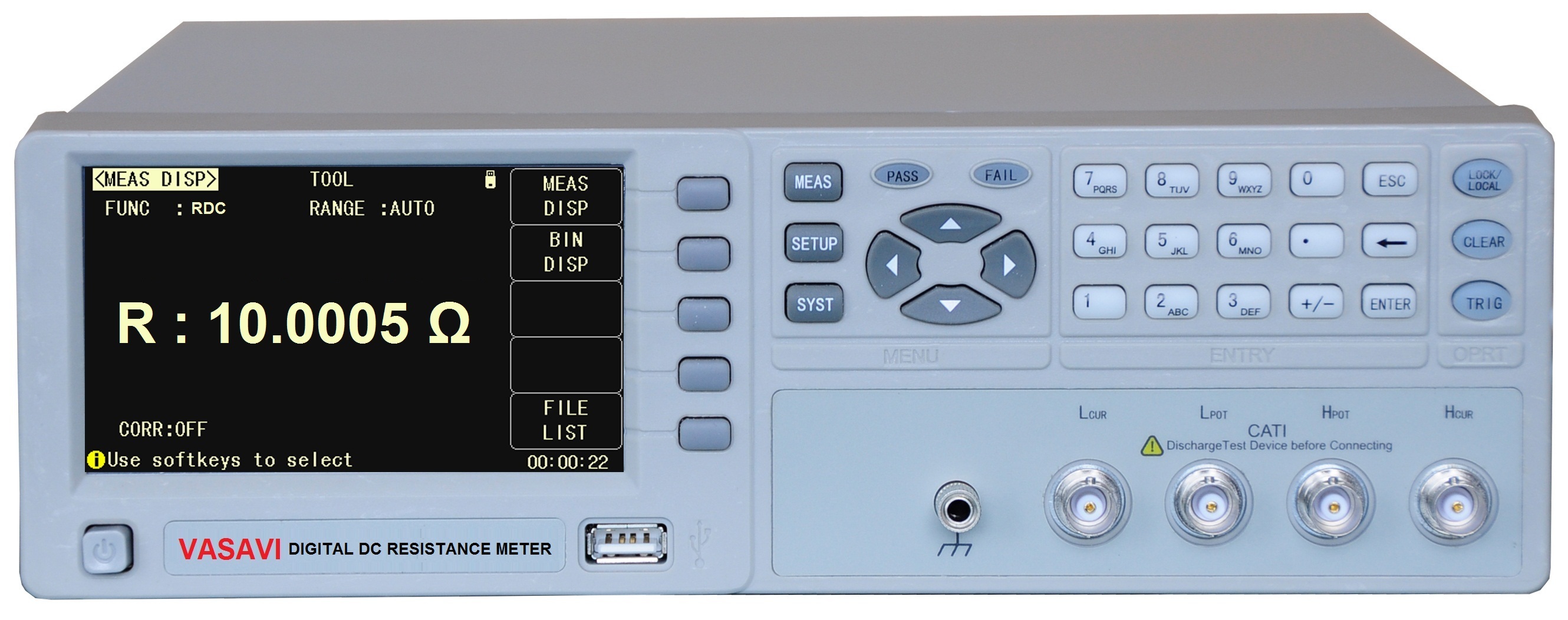

DIGITAL DC RESISTANCE METER (VE2516BU)

DIGITAL DC RESISTANCE METER

VE2516BU : Technical Data / Demonstration Video

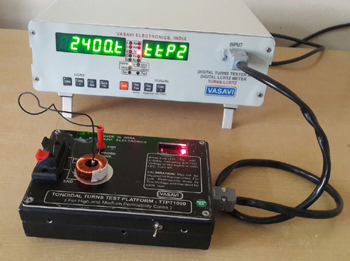

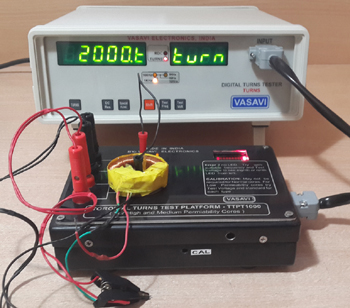

TURNS TESTER for Toroidal Coils (TURNS-TTPT)

Digital TURNS TESTER for Counting Number of Turns for Toroidal Coils , Current Sensor , Current Transformer , Round Core Coils. Can measure, Turns along with Winding Polarity and DC Resistance.

Turns Measurement ( through Toroidal Turns Test Platform) :

TTPT-100 : 5 Turns ~ 1000Turns

TTPT-1000 : 500 Turns ~ 10,000Turns

TURNS-TTPT : Technical Data / Demonstration Video

TURNS TESTER for Toroidal Coils (TURNS-LCRTZ)

Digital TURNS TESTER with LCR for Counting Number of Turns for Toroidal Coils , Current Sensor , Current Transformer , Round Core Coils. Can measure, Turns along with Winding Polarity , DC Resistance , Inductance (L), Capacitance (C), DC Resistance, Rac, Q, D, ESR and Tan.

Turns Measurement ( through Toroidal Turns Test Platform) :

TTPT-100 : 5 Turns ~ 1000Turns

TTPT-1000 : 500 Turns ~ 10,000Turns

TURNS-LCRTZ : Technical Data / Demonstration Video

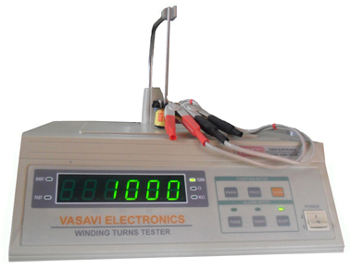

WINDING TURNS TESTER ( VE201R) for Air Core Coils / Solenoid Coils / Bobbin Coils

Winding Turns Tester for Counting Number of Turns for Air Core Coils, Bobbin Coils or Solenoid Coils. Can measure, Turns along with Winding Polarity and DC Resistance.

Coil Turns Tester , Solenoid Coil Turns Tester , Bobbin Coil Turns Tester , Automobile Coil Turns Tester , Winding Turns Tester

Turns Measurement : 1 Turns to 80,000 Turns

VE201R : Technical Data / Demonstration Video

( Italian ; Thai , Spanish )

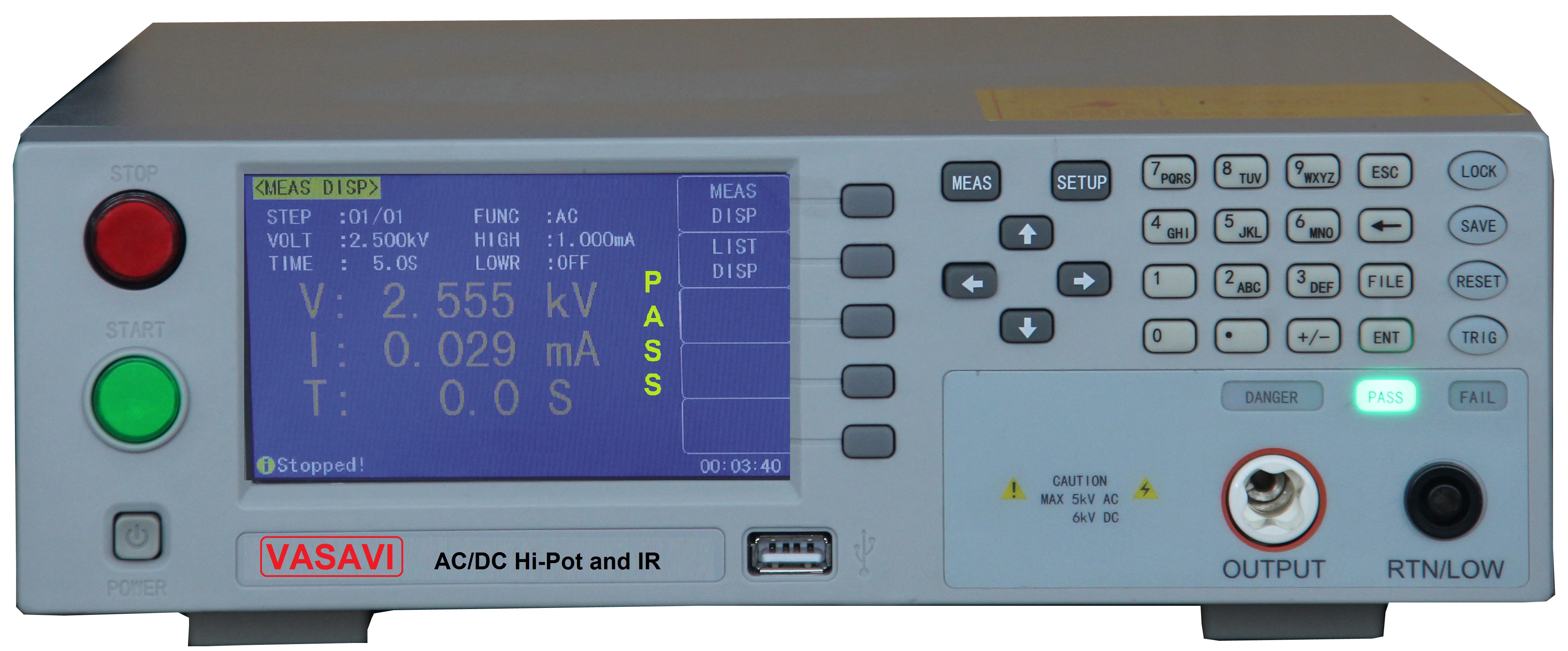

AC / DC Hi-Pot & Insulation Resistance Tester  (VE9311U)

Microprocessor Based AC / DC Withstanding Voltage Tester with Insulation Resistance Meter. With PASS / FAIL indications.

AC : 5KV / 12mA ; DC : 6KV / 5mA

VE9311U : AC / DC Withstanding & IR Tester ;  Technical Data / Demonstration Video

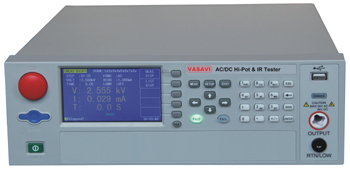

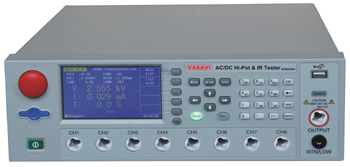

 AC / DC Hi-Pot & Insulation Resistance Tester (VE9051U / VE9053SU)

Microprocessor Based AC / DC Withstanding Voltage Tester with Insulation Resistance Meter. With PASS / FAIL indications.

AC : 5KV / 30mA ; DC : 6KV / 10mA

VE9051U : AC / DC Withstanding & IR Tester ;  Technical Data / Demonstration Video

VE9053SU : AC / DC Withstanding & IR Tester with 8 Channel Scanner ; Technical Data / Demonstration Video

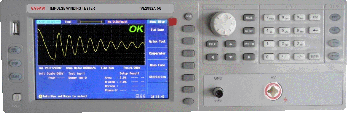

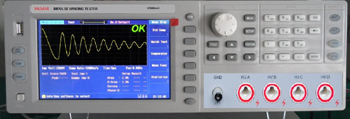

Impulse Tester / Winding Short Tester

Impulse Tester can detect turn & layer short ,the differences in the number of turns and the material of the core. If high impulse voltage is applied, the poor insulation will appear as a corona or layer discharge

VE2882A-5U : 5KV Impulse Winding Tester (Demo Video)

VE2882A2-5U : 5KV with 2 Channel Impulse Winding Tester

VE2882A4-5U : 5KV with 4 Channel Impulse Winding Tester

(Demo Video  : Magneto Testing / DC Rotor Testing )

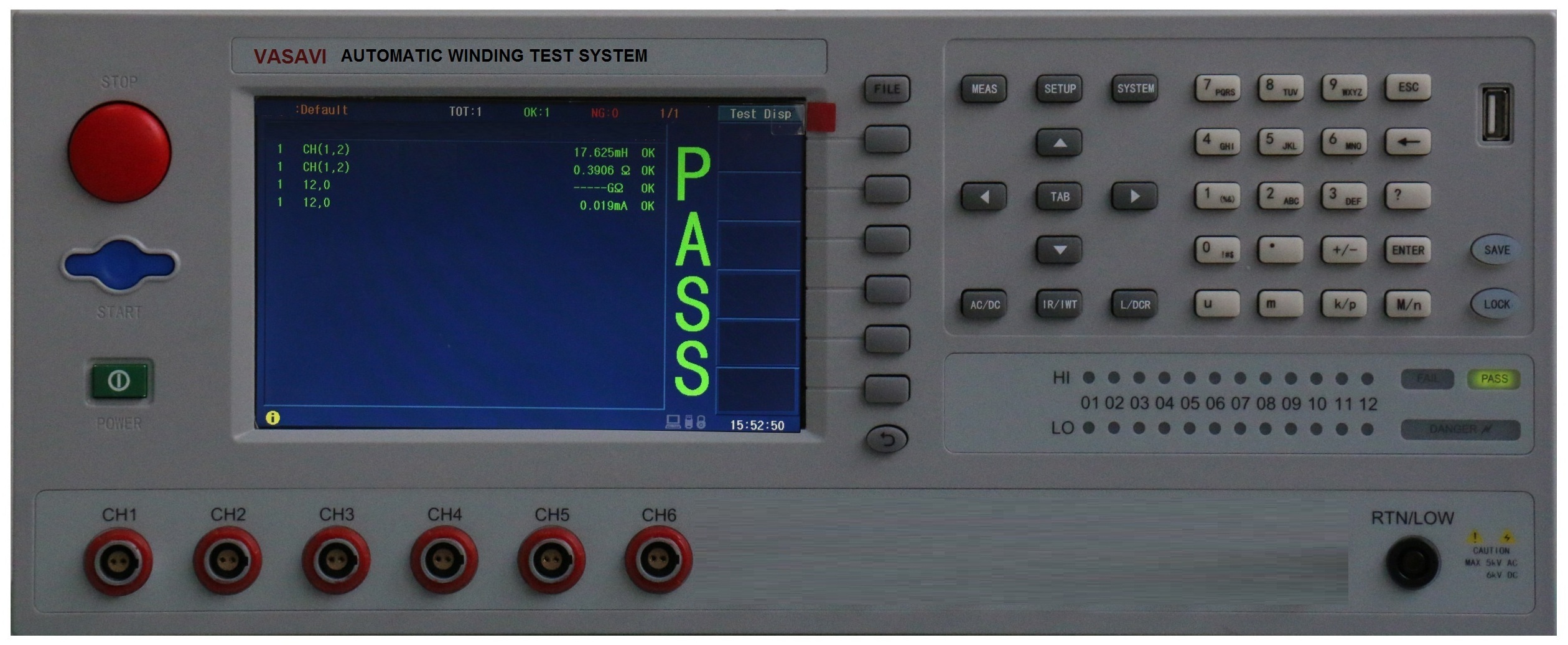

AUTOMATIC WINDING TEST SYSTEM / MOTOR TESTER

Microprocessor based Automatic Test System for Automobile Coils, Magnetos, Alternator, Motor Winding.

Can Test : Impulse Winding Tester (IW), AC/DC HiPot, Insulation Resistance (IR), Inductance (L), DC Resistance (DCR)

VE9036SU : AUTOMATIC WINDING TEST SYSTEM (6-Channel)

(Technical Data / Demo Video)

VE90312SU : AUTOMATIC WINDING TEST SYSTEM (12-Channel)

(Technical Data / Demo Video)

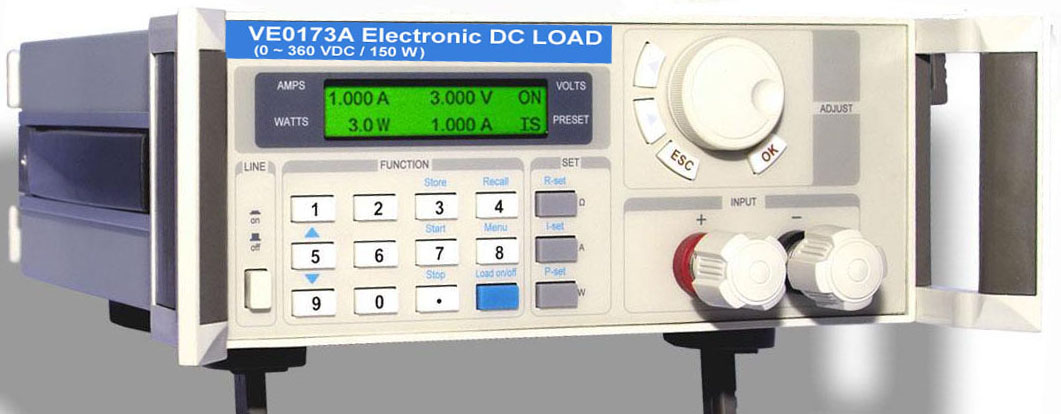

150W / 300W Programmable Electronics DC Load (VE0173A / VE1173A)

Programmable Electronic DC Load for 30A most ideal for mobile chargers, battery chargers, SMPS etc. Can test with CC, CP, CR Mode

VE0173A : 360Vdc / 30A / 150W (Technical Data / Demonstration Video)

VE1173A : 360Vdc / 30A / 300W (Technical Data / Demonstration Video)

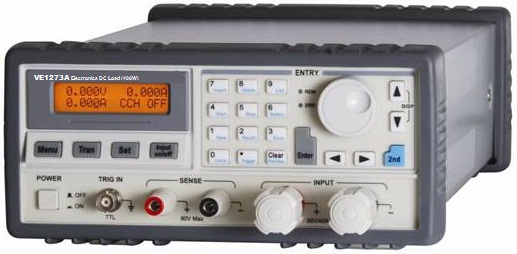

200W / 350W / 400W Programmable Electronics DC Load (VE2273A / VE3273A / VE1273A)

Programmable Electronic DC Load for most ideal for mobile chargers, battery chargers, SMPS etc. Can test with CV, CC, CP, CR Mode

VE2273A : 200Vdc / 20A / 200W (Technical Data / Demonstration Video)

VE3273A : 200Vdc / 30A / 350W (Technical Data / Demonstration Video)

VE1273A : 80Vdc / 40A / 400W (Technical Data / Demonstration Video)

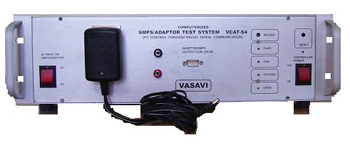

Computerized Automatic SMPS / ADAPTER TEST SYSTEM (VCAT-S4 )

Computerized Automatic SMPS / ADAPTER test System is most ideal for mobile chargers, battery chargers, SMPS etc. 50V / 2A / 50W

Data Sheet :VCAT - S4

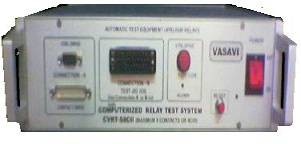

Computerized Automatic Test Equipment ATE for Relays

Ideal for automatic testing of Electro mechanical and Read Relays (Only DC relays)

CVRT-S8 : Computerized Relay Tester for Max. 8 Contacts DC Relay (Technical Data)

CVRT-S16 : Computerized Relay Tester for Max. 16 Contacts DC Relay (Technical Data)

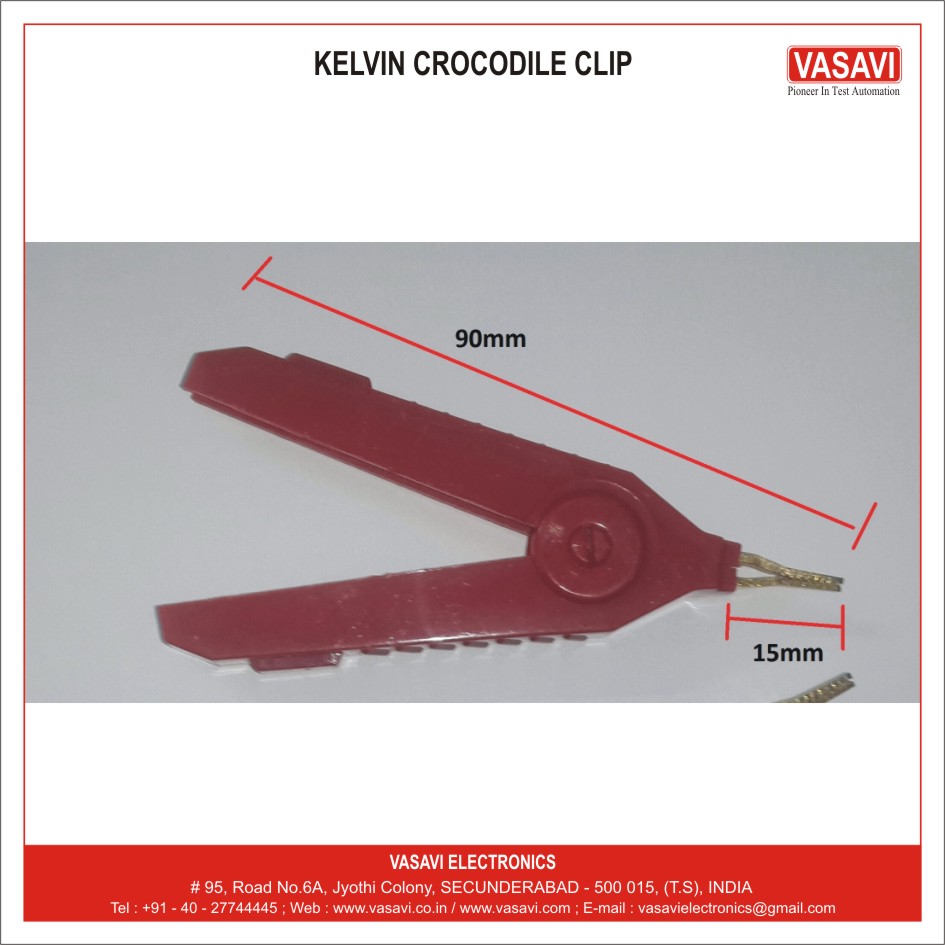

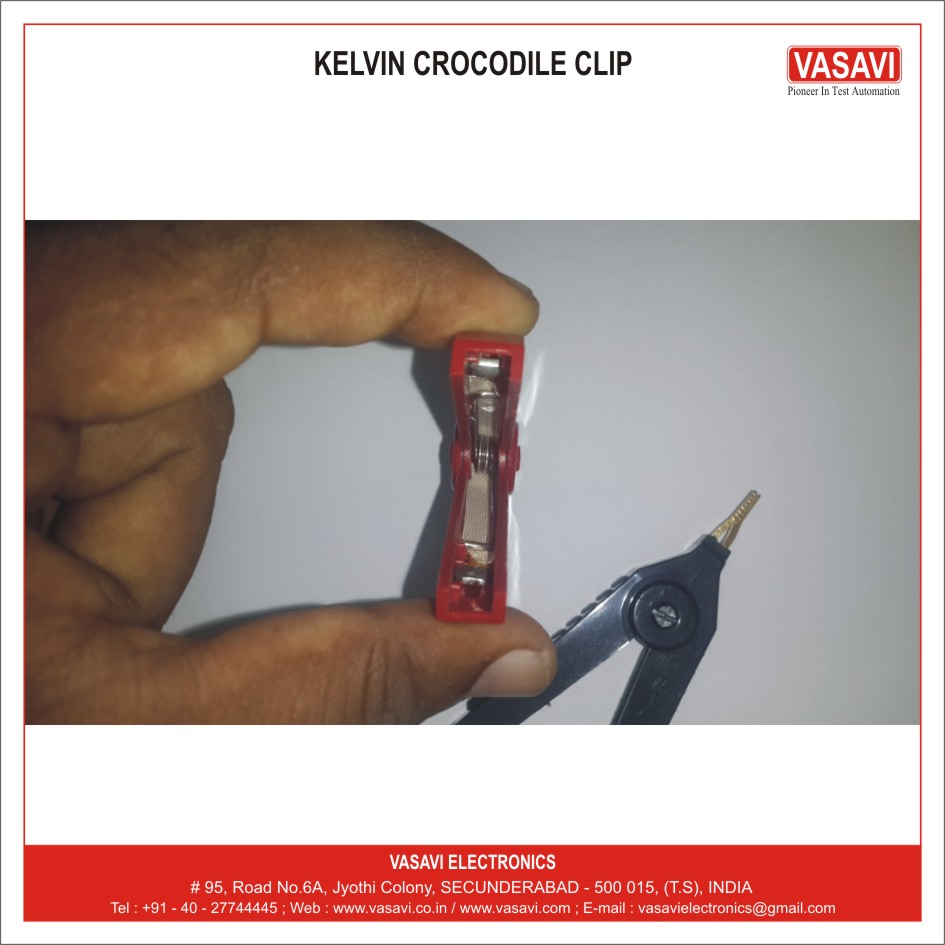

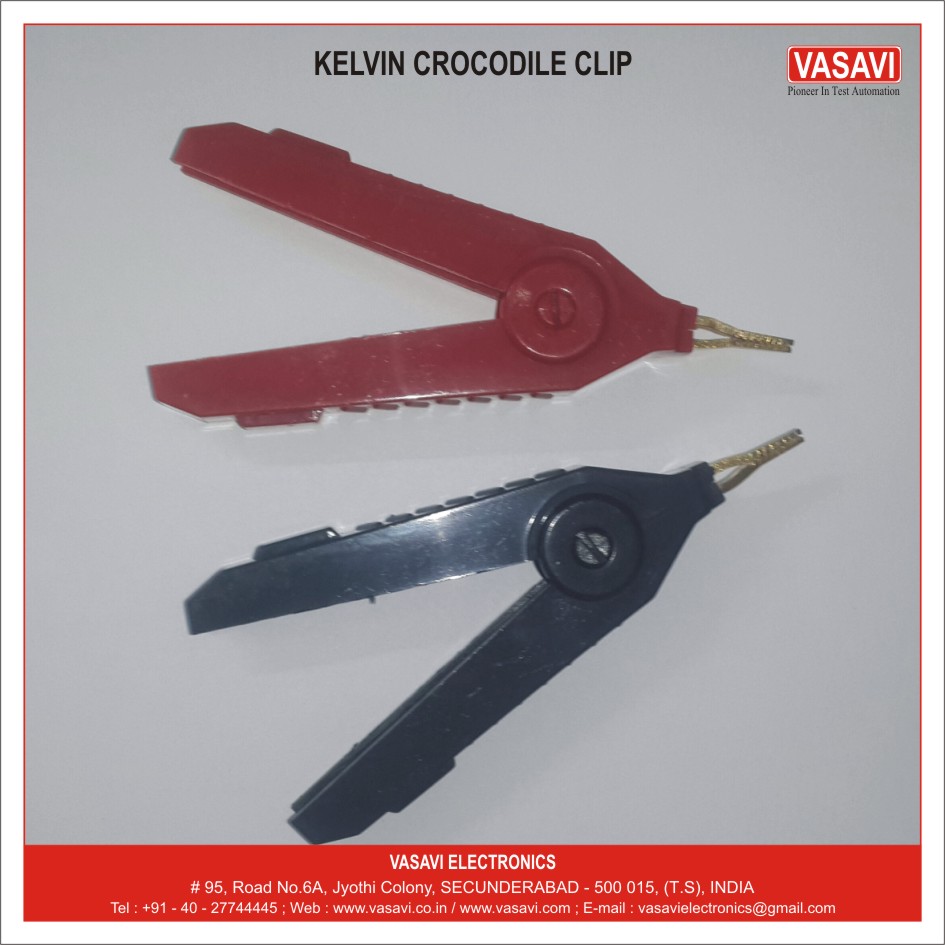

KELVIN CROCODILE TEST CLIP

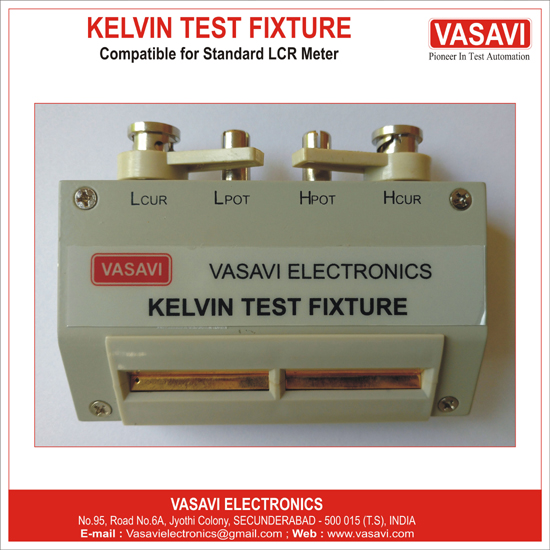

FOUR TERMINAL KELVIN TEST FIXTURE

Suitable Standard LCR Models

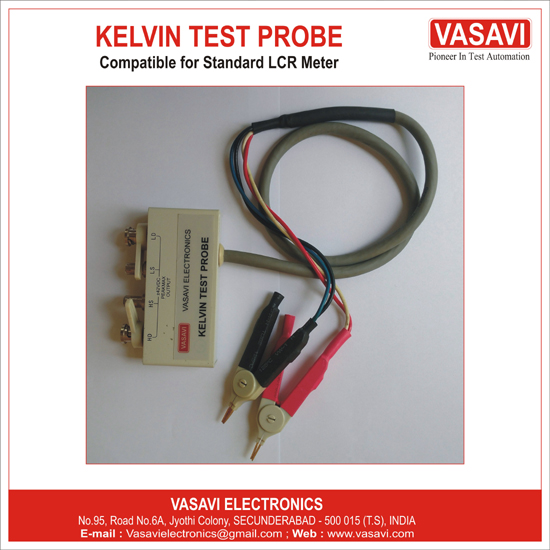

FOUR TERMINAL KELVIN TEST PROBE

Suitable Standard LCR Models

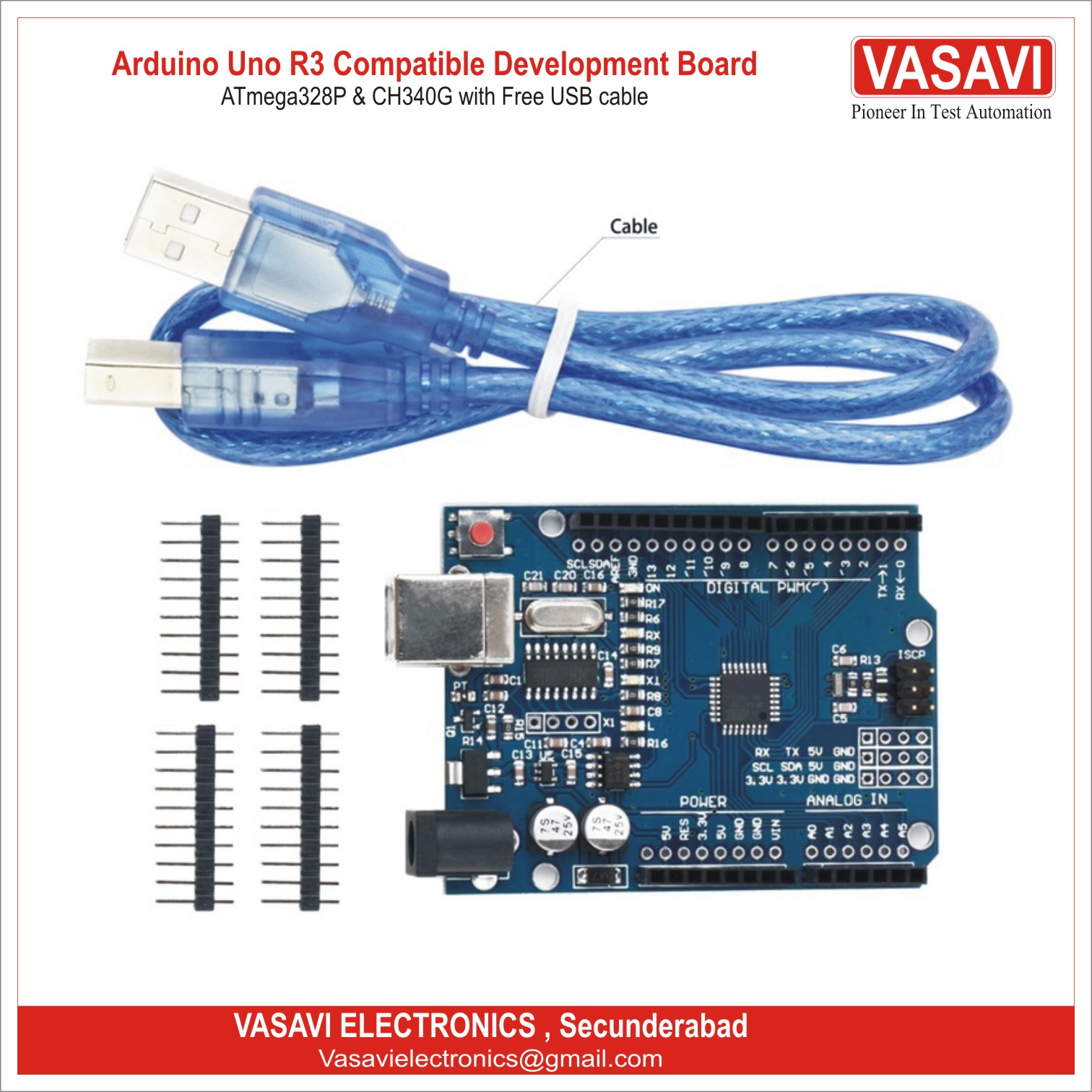

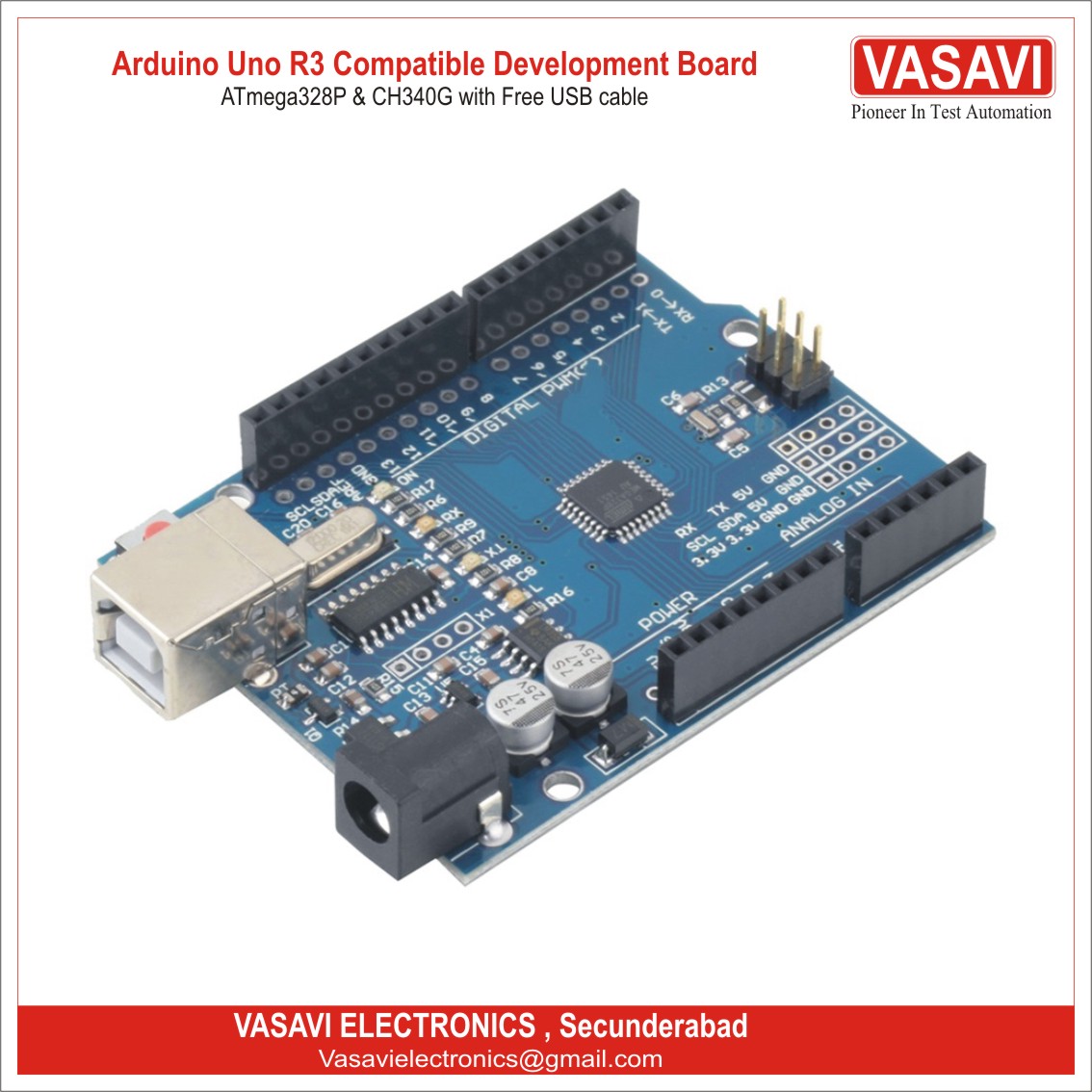

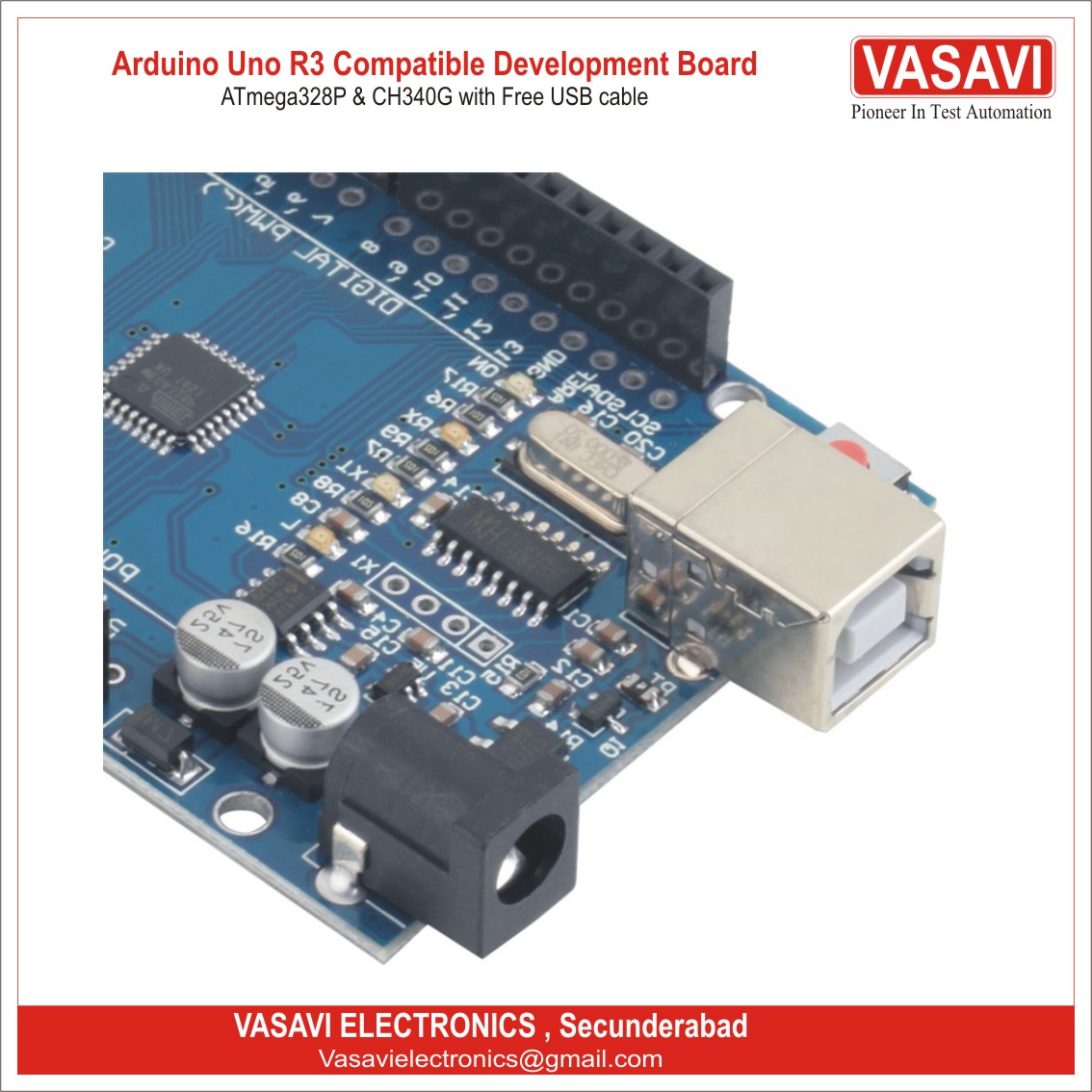

Arduino Uno R3 Compatible Development Board ATmega328P

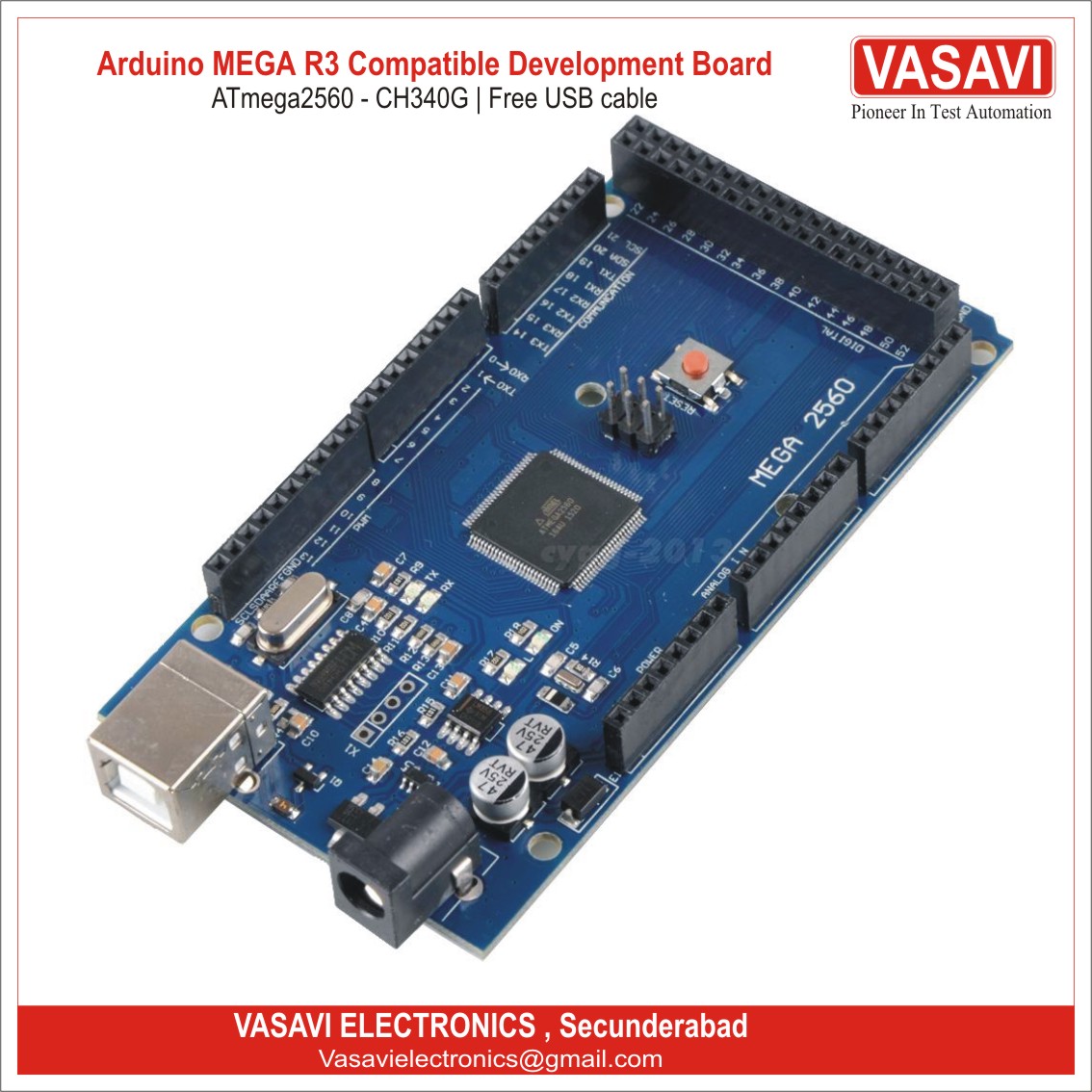

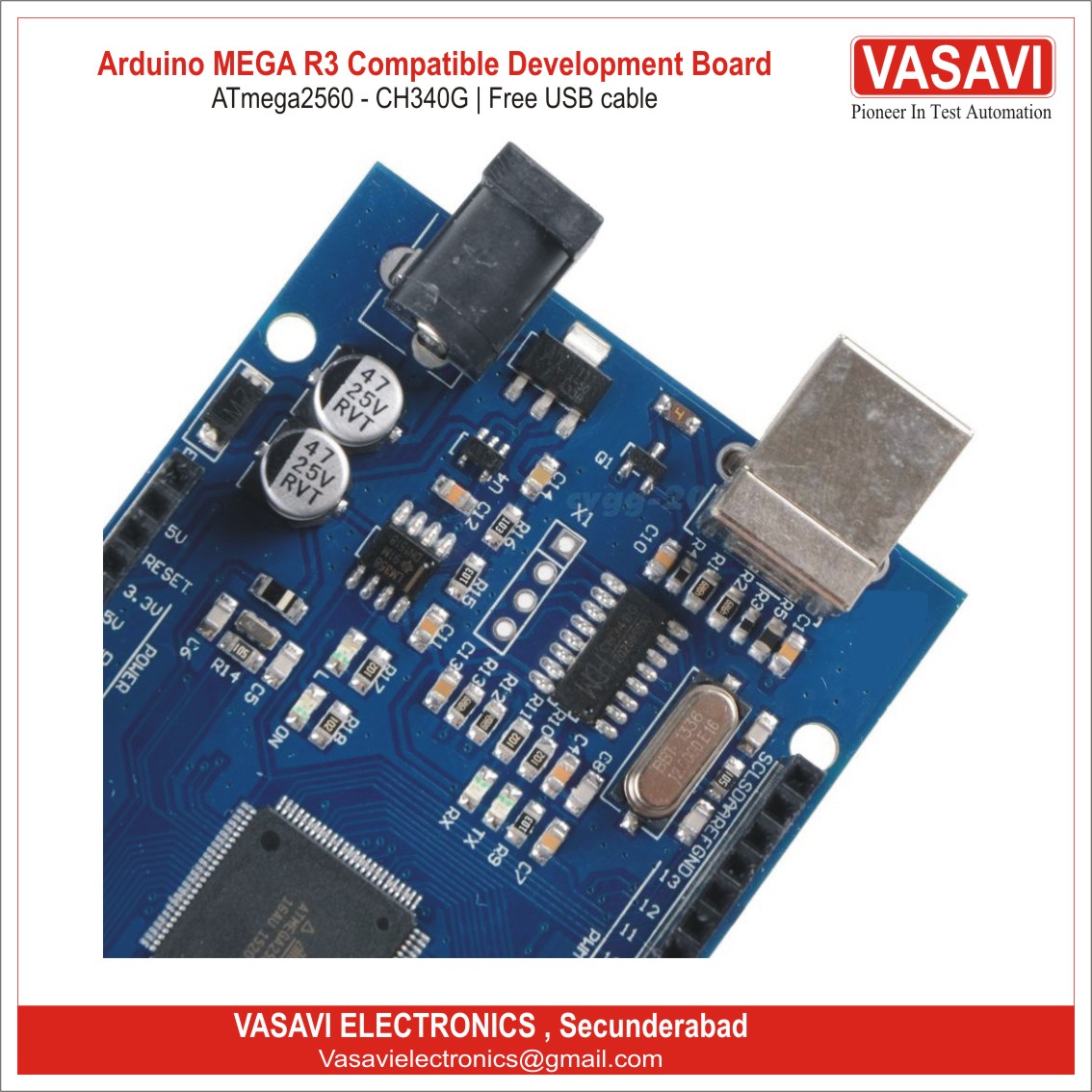

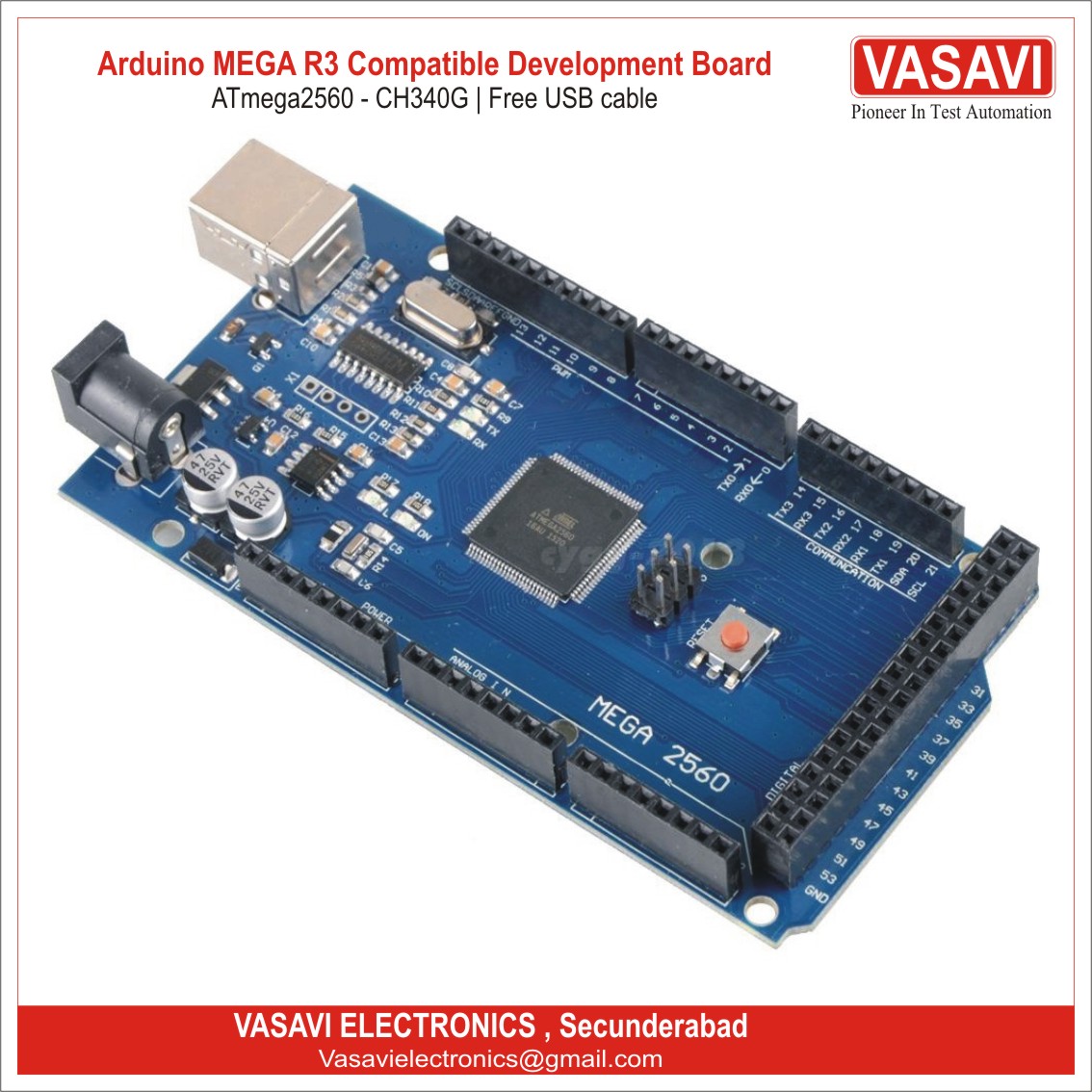

Arduino MEGA R3 Compatible Development Board

Development Boards

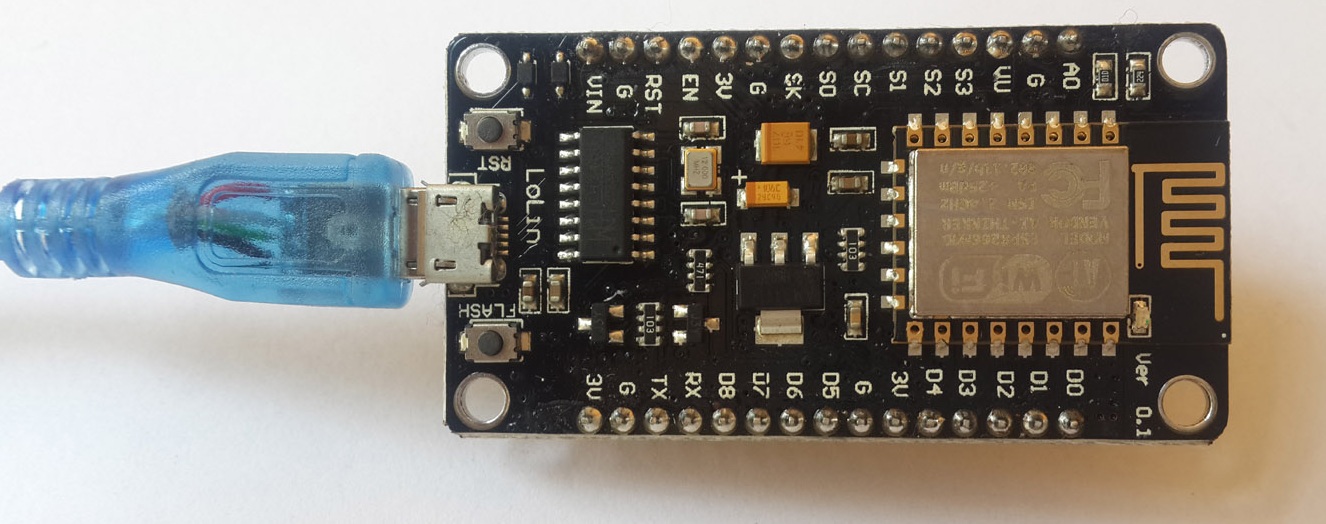

ESP8266 WiFi Node

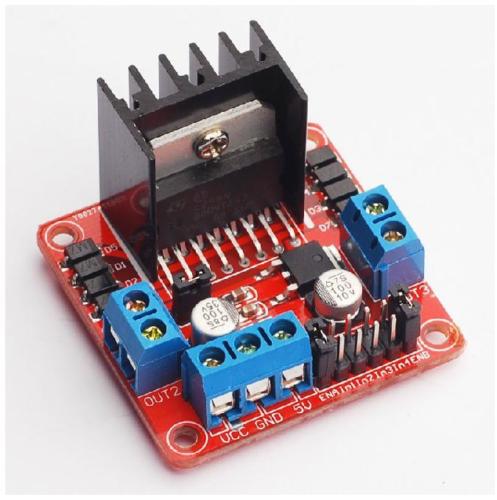

L293N Stepper Motor Driver

MAX7219 Dot Matrix

Servo Motor

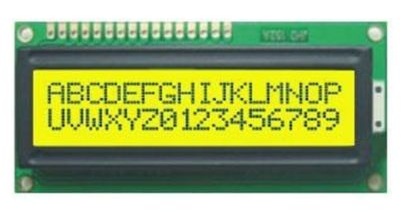

16 x 2 LCD Display

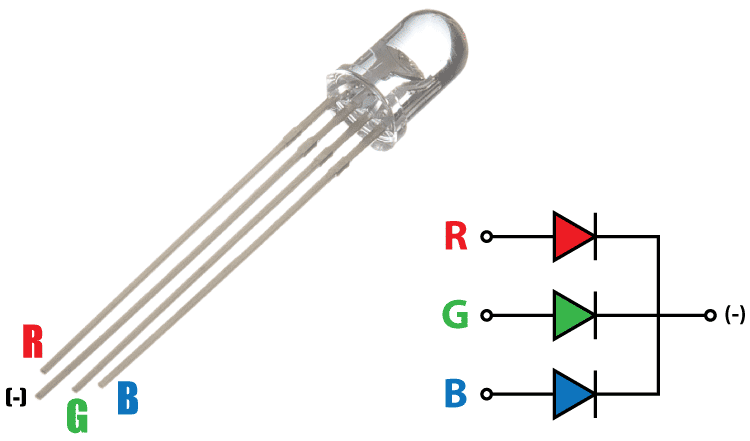

RGB LED




Market

VASAVI ELECTRONICS has been supplying to several large manufacturers through out India including multinational companies and 100% Export oriented units. Most of the ferrite-transformer manufacturers in India are using Vasavi automatic test equipment. Vasavi specially designed automatic equipment for testing aerospace relays being manufactured by CII Guardian who are the Indian associates of TYCO Electronics, USA. Designed equipment for auto testing of signaling relays used in Indian railways.

With the modernization and computerization of every field, now it is time for atomization of testing even for small manufacturing companies. The experience in both instrumentation and computerization have helped Vasavi to revolutionize the test automation even for small component manufacturers by the most economical and viable solutions.

Having supplied to several hundreds of Indian customers, Vasavi is now looking for the export market or associations by large foreign marketing companies/brands.

We also export our products to USA , MEXICO, CHINA, UK, FRANCE, GERMANY, HONG KONG, NEW ZEALAND, BRAZIL, THAILAND, HAITI and  etc...
