WINDING TURNS TESTER ( VE201R )

( Coil Turns Tester For Air Core Coils, Solenoid Coils, Bobbin Coils )

Coil Turns Tester , Turns Tester , Turns Counter , Coil Turns Counter , Toroidal Turns Tester , Bobbin Turns Tester , Coil Turns Tester , Ratio Turns Tester / Counter for Air Core or Bobbins or Solenoid Coils

WINDING TURNS TESTER

Winding Turns Tester is one of our best products with reliable quality, high measurement speed, high accuracy, excellent performance and easy to use. It can measure Turns , Winding Polarity and DC Resistance of any Air core Coil, motor windings, high / low voltage coil transformers, Relay coil and so on. It is widely used for production, R&D or Q.C.

Main Function :

  • Microprocessor Based Instrument

  • 4 Terminal Measurement / Kelvin Measurement for measuring Resistance

  • Good Measurement Stability and Performance

  • Does not require a Standard Coil when every you test

WINDING TURNS TESTER SPECIFICATIONS :

Max. Size of Coil

  I.D > 4mm ; O.D < 120mm ; H < 110mm

Turns Measurement Range

  1 ~ 80,000 Turns

Turns Accuracy

  0 ~ 1,000 Turns ( + 0.2% + 1 Turn)

  1,001 ~ 20,000 Turns ( + 0.3% + 2 Turn)

  > 20,000 Turns ( + 0.5% + 5 Turn)

DC Resistance Measure Range

  100m Ohm ~ 20K Ohm

Resistance Accuracy

  0.5% +1 dgt

Displayt

  6 Digit 7-Segment LED Display

Range Mode

  Auto Range

Alam Setup

  Short, Phase & Silent Selectable

Power Requirement

 110V ~ 240V ac (47Hz ~ 63Hz)

Dimension

 335mm x 320mm x 290mm

Weight

  App. 6Kg

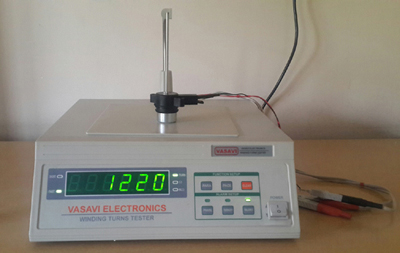

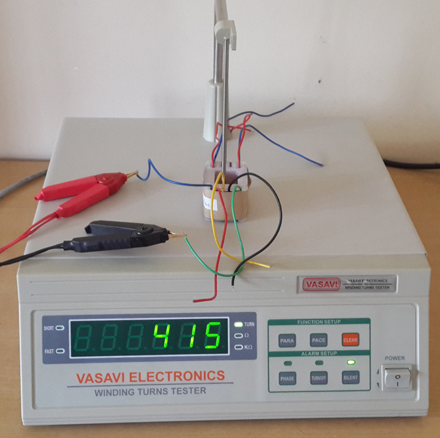

Pictures of WINDING TURNS TESTER :

VE201R : Technical Data ; YouTube Demonstration
